Endstation

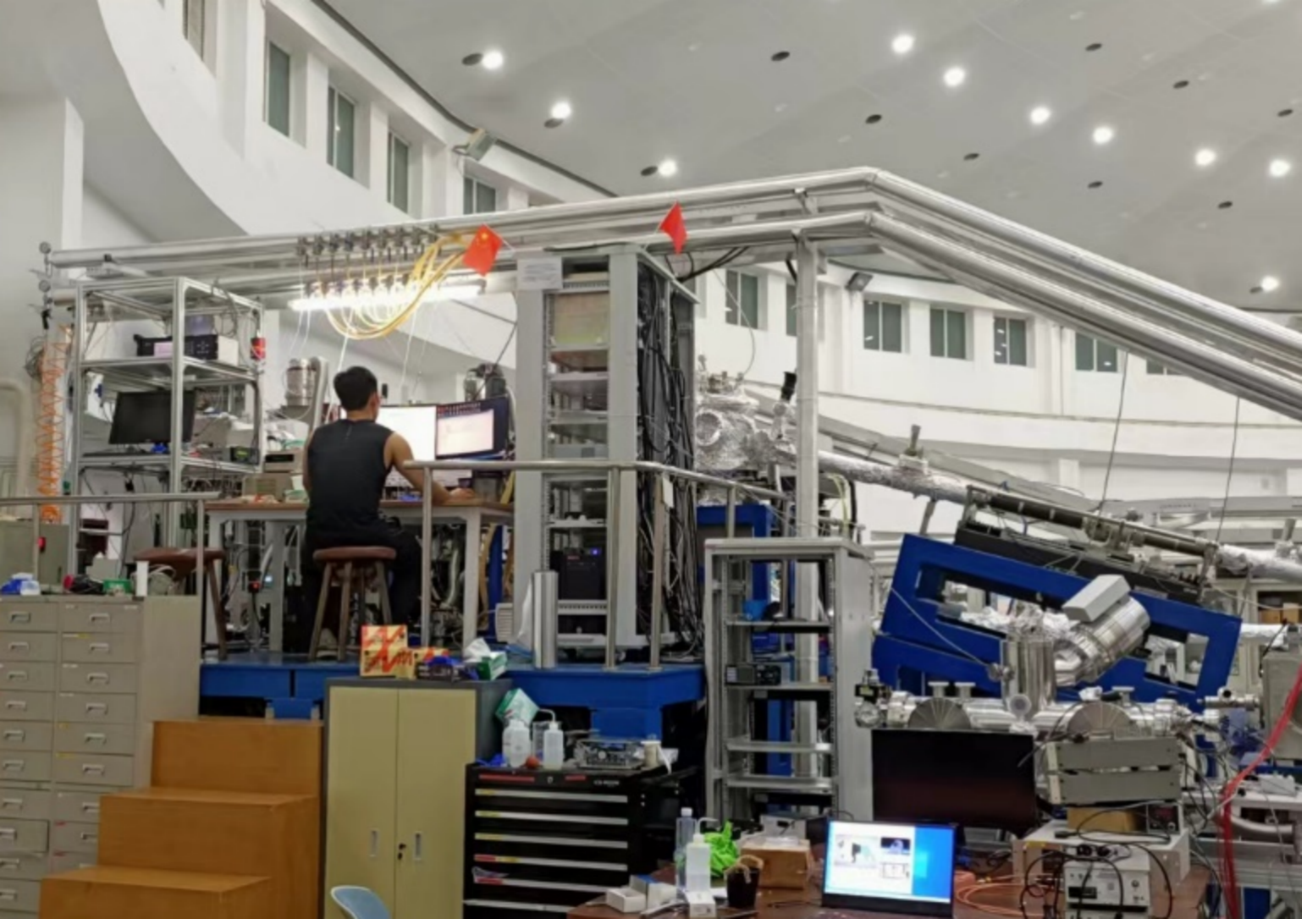

The BL09U experimental station is an atomic and molecular physics experimental station. Its core function is to detect intermediates and isomers in complex reaction systems, and to clarify specific reaction mechanisms through precise structural analysis, combined with high-level quantum chemical calculations and theoretical simulations. The experimental station is equipped with a high-resolution SVUV-PIMS, PEPICO, SVUV-AMS and a high-pressure flow reactor, a normal-pressure jet stirring reactor, a low-pressure flow reactor, a SiC microreactor, an atmospheric oxidation reactor, a liquid phase reactor, an aerosol lens, and a photo/thermal/electric catalytic reactor that match the mass spectrometer system. The temperature control range is 300~1700K, and the pressure is 10-3−30 atm.

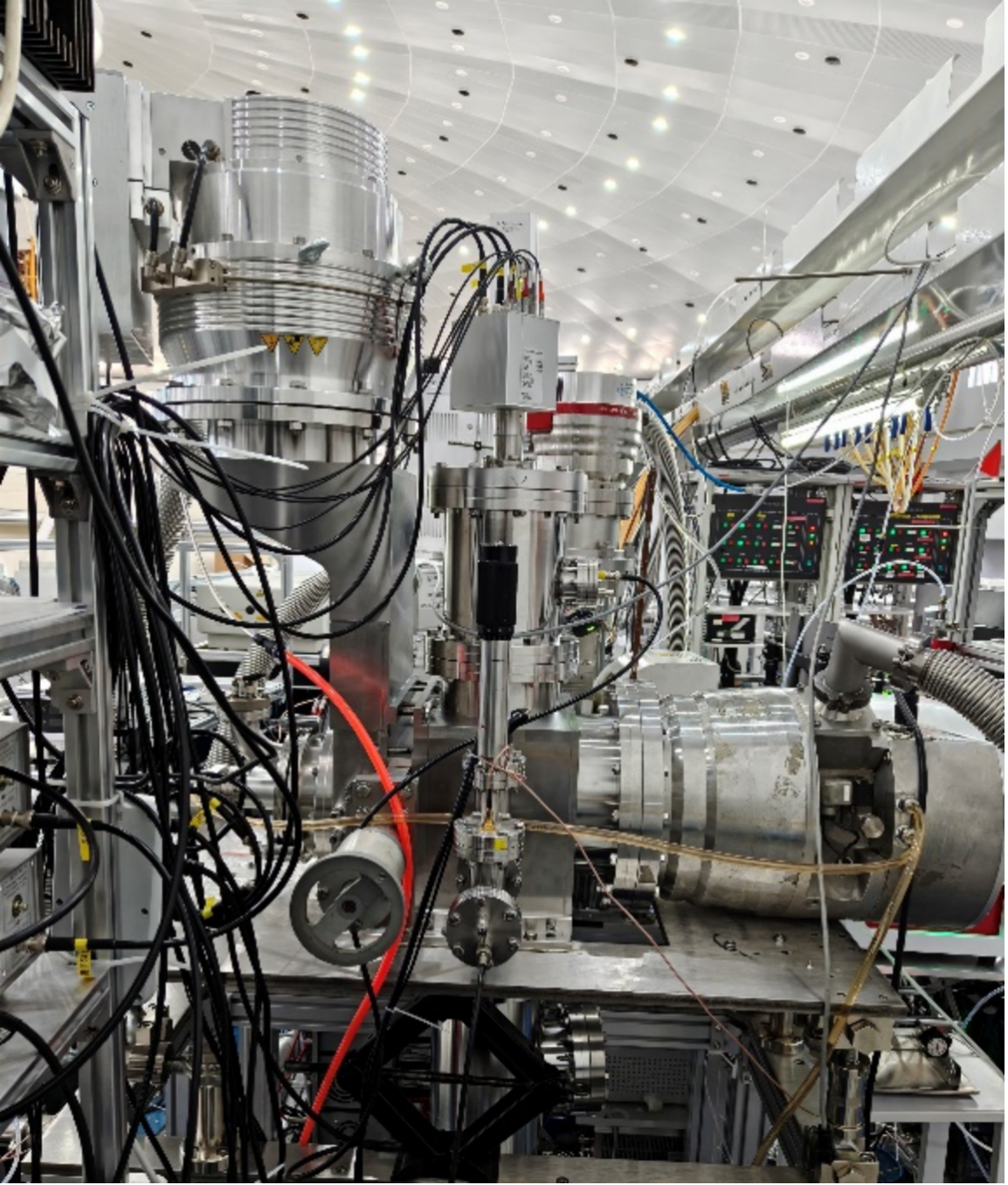

SVUV-PIMS

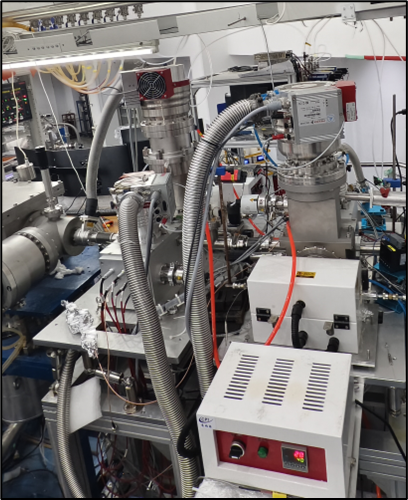

SVUV-PEPICO

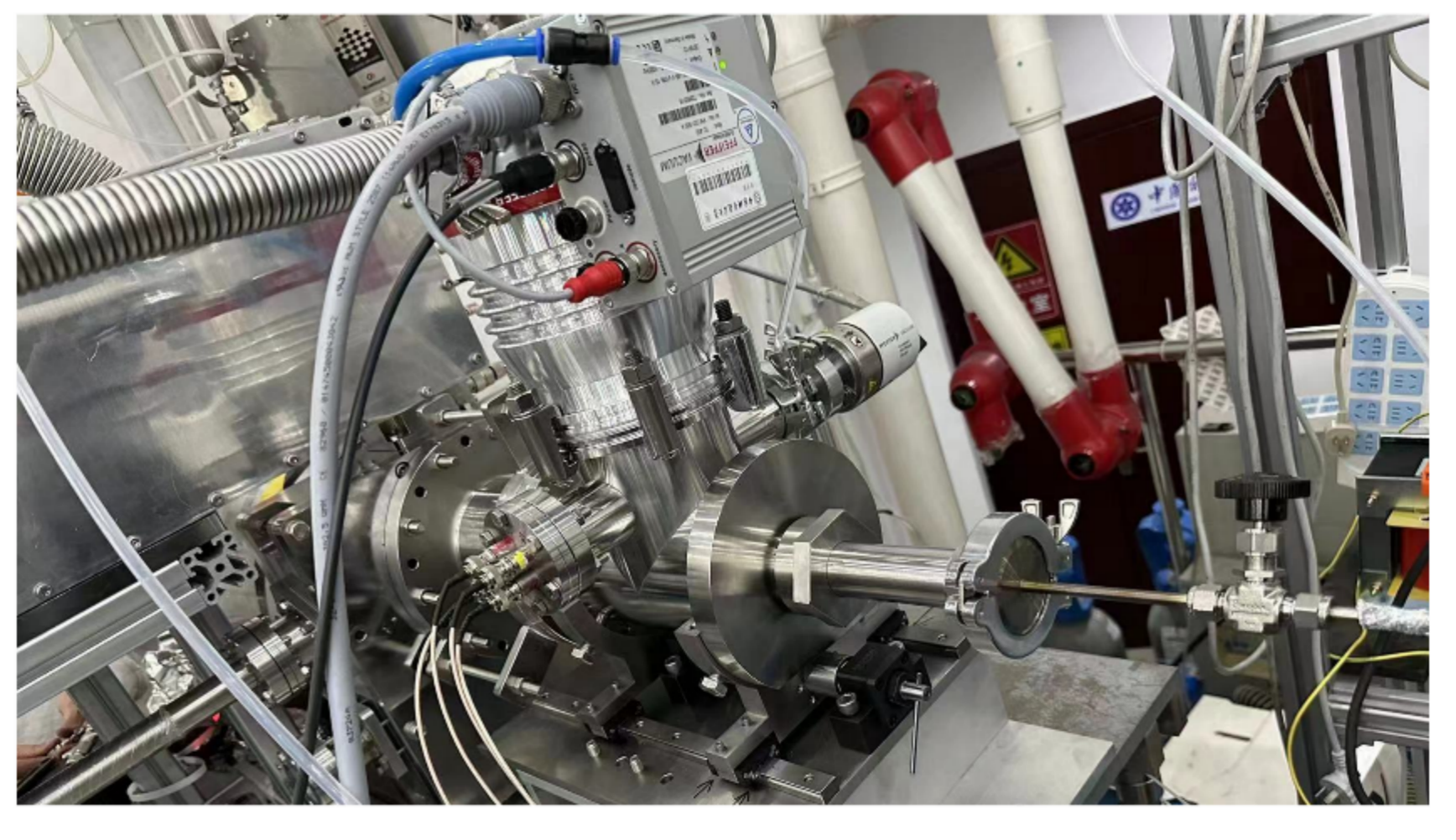

SVUV-AMS
