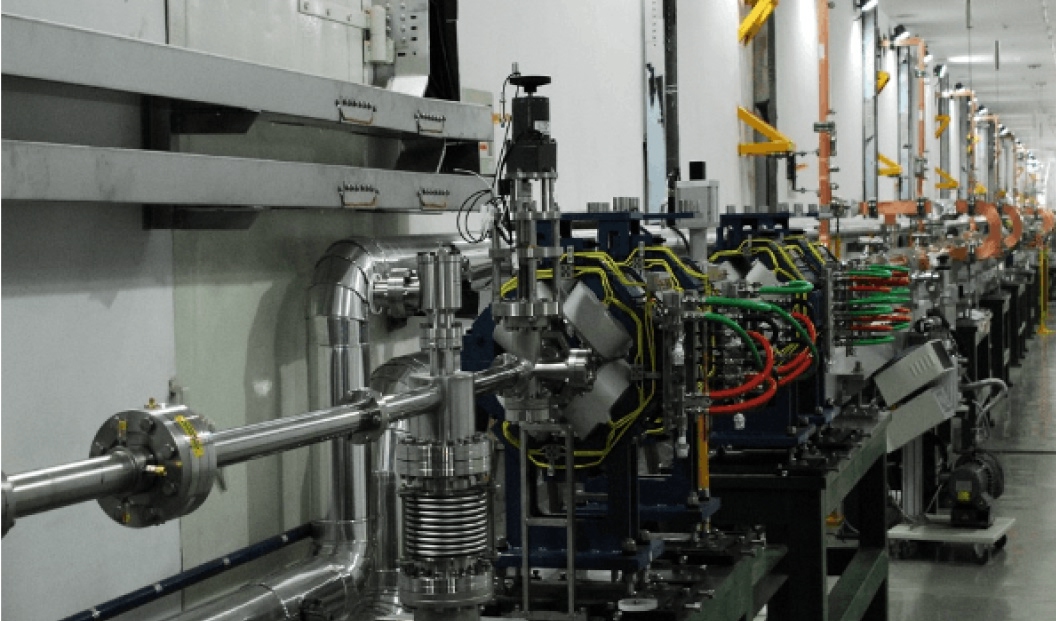

Linear Accelerator

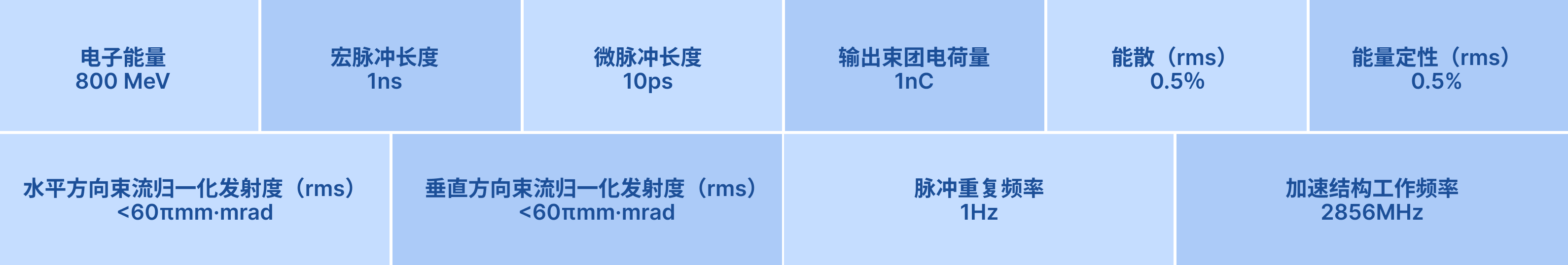

Main Parameter table of Linear Accelerator System
Operating energy
800 MeV
800 MeV
Macropulse Length
1ns
1ns
Micropulse Length
10ps
10ps
Output Bunch Charge
1nC
1nC
Energy Spread (rms)
0.5％
0.5％
Energy Stability (rms)
0.5%
0.5%
Horizontal Normalized Emittance (rms)
<60πmm·mrad
<60πmm·mrad
Vertical Normalized
(rms) <60πmm·mrad
(rms) <60πmm·mrad
Macropulse Repetition Rate
10Hz
10Hz
Operating Frequency of The Accelerating Structure
2856MHz
2856MHz
