Endstaion

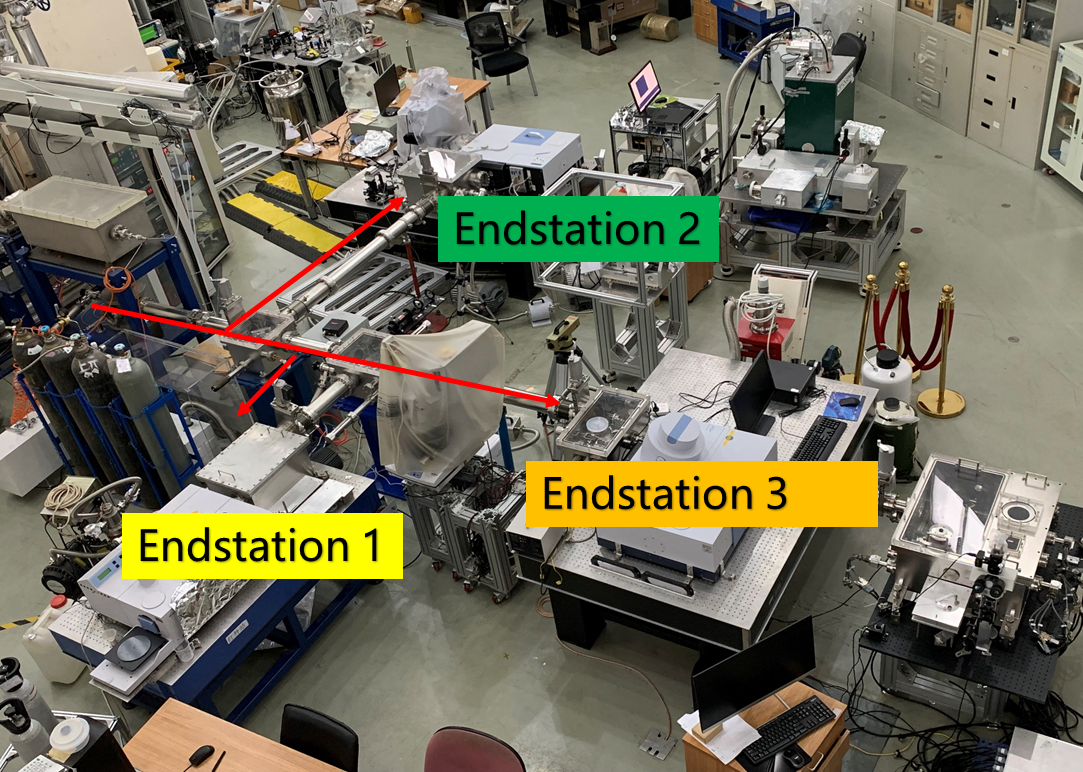

As illustrated, the experimental facility comprises three distinct endstations: Endstation 1: In Situ Spectroscopy Experimental Endstation, Endstation 2: Microspectroscopy Imaging Experimental Endstation, and Endstation 3: Extreme Conditions Experimental Endstation.

Endstation 1: In Situ Spectroscopy Experimental Endstation

Bruker IFS 66V Fourier Transform Infrared Spectrometer

Beam Splitters: KBr, Mylar, Quartz

Detectors: MCT, DTGS, Si-bolometer

Experimental Setup and Sample Environment: Low-temperature reflection and transmission spectroscopy apparatus (5-300 K), diffuse reflection and in situ reaction cell (300-800 K, with gas flow capability), variable angle reflection apparatus (13-83°)

Auxiliary Equipment: Pellet press

Endstation 2: Microspectroscopy Imaging Experimental Endstation

Bruker VERTEX 70v Fourier Transform Infrared Spectrometer

Bruker Hyperion 2000 Microscope Imaging System (36X, 15X Objectives)

Beam Splitters: KBr, Mylar, Quartz

Detectors: MCT, DTGS

Experimental Setup and Sample Environment: Low-temperature system (5-500 K), magnetic field reflection and transmission spectroscopy apparatus, diamond anvil cell

Auxiliary Equipment: Optical microscope

Endstation 3: Extreme Conditions Experimental Endstation

Bruker VERTEX 80v Fourier Transform Infrared Spectrometer

Self-developed Microscope System (15X Objective, 15X Long Working Distance Objective)

Beam Splitters: KBr, Mylar, CaF2, Si

Detectors: MCT, DTGS, Si-Bolometer

Experimental Setup and Sample Environment: Low-temperature system (25-500 K), diamond anvil cell

Auxiliary Equipment: Fluorescence pressure marking system
